Abyss A CLASS Amplifier
11.000,00 €
Specifications:
OUTPUT POWER RATING:
14.4V ( CLASS A): 25W X 2 @ 4 OHM 50 DEGREE C
14.4V ( CLASS AB):210W X 2 @ 4 OHM
350W X 2 @ 2 OHM
500W X 2 @ 1 OHM
MONOBRIDGED: NA
OPERATING VOLTAGE : 11 – 16V
POWER SUPPLY: PWM
OUTPUT POWER CIRCUIT CONFIGURATION: CLASS A/ CLASS AB
MAIN PCB MATERIAL : FR-4D/ 1 OZ, GOLD PLATED
MISCELLANEOUS SPECIFICATIONS:
SOFT START SOUND: YES
FREQUENCY RESPONSE @ -1dB ( 4 OHM 10 WATT): 5HZ – 100KHZ
DAMPING FACTOR ( 4OHM/ 1%) : >650
S/N RATIO ( A-WEIGHT/ RMS POWER) :> 105dB
THD: ( 1-WEIGHT) 10W : < 0.050%
CHANNEL SEPARATION: > 70dB
VARIABLE INPUT GAIN CONTROL ( 1% THD+N): 1V ~ 10V
FUSE REQUIREMENT : 120A ( EXTERNAL)
LED(s): POWER/ PROTECT
PROTECTION ( SHORT, THERMAL, DC OFFSET): YES
RESIDUAL NOISE ( A- WEIGHT): 0.5mV BELOW
DIMENSIONS(WXHXL, MM): 400X95X420
WEIGHT: 10KG
- Description
- Reviews (0)
Description

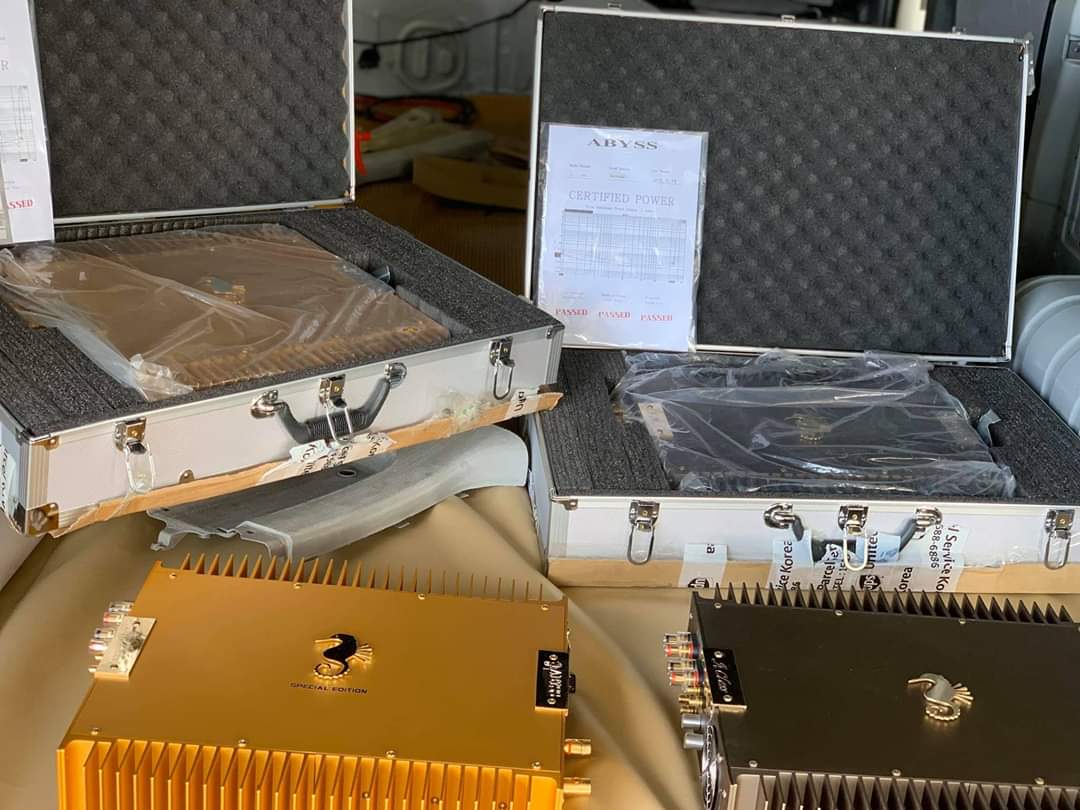

The Abyss A Class Amplifier.
The one true legend that only the purist will appreciate!
No, this is not for the daily commoner.
No this is not for the car audio newbie who just wants ” good sound”.
This is for the insane hi-fi addict who wants to bring his home system into his car.
This is for the person who wants only the best in his car.
This is for the person who does not care about competition, sound stage nor what everyone else says:
This is for the purist who truly appreciates great sound.
